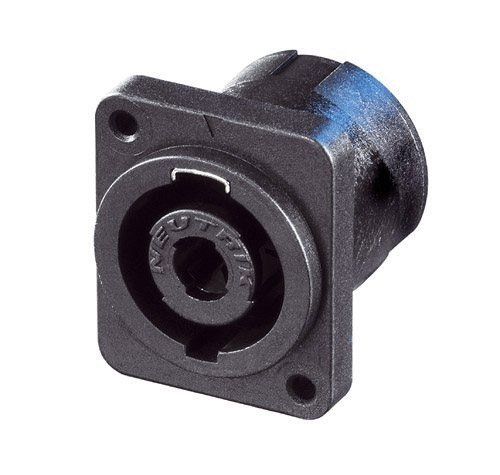

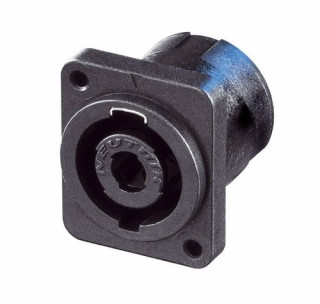

Neutrik NL4MP-M3 Speakon 4 pole chassis connector, black D-size flange, M3 threaded insert, 3/16" flat tabs
Description
Discontinued. Please use the new version NL4MPXX-3.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Produkt
Titel
NL4MP-M3
Verbindungstyp
speakON
Geschlecht
male
Elektrische Daten
Durchgangswiderstand
? 3 m? (inner) (after lifetime)
Durchschlagsfestigkeit
4 kVdc (peak)
Isolationswiderstand
> 1 G? (after dampheat)
Nennstrom pro Kontakt
30 A rms continuous
Nennstrom pro Kontakt
40 A audiosignal, duty cycle 50 %
Nennspannung
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanische Daten
Lebensdauer
> 5000 mating cycles
Verriegelung
Quick Lock
Einbaurichtung
rear
Gehäuseform
D
Layout
standard hole position, metal M3 thread
Material
Kontaktbeschichtung
4 µm Ag
Kontakte
Bronze (CuSn6)
Gehäuse
Polyamide (PA 6 30 % GR) black
Umwelt
Entflammbarkeit
UL 94 HB
Lötbarkeit
Complies with IEC 68-2-20
Temperaturbereich
-30 °C to +80 °C
