Neutrik NL8MD-V-1 speakON Chassis Connector
Neutrik NL4MD-V-S speakON Chassis Connector
Description

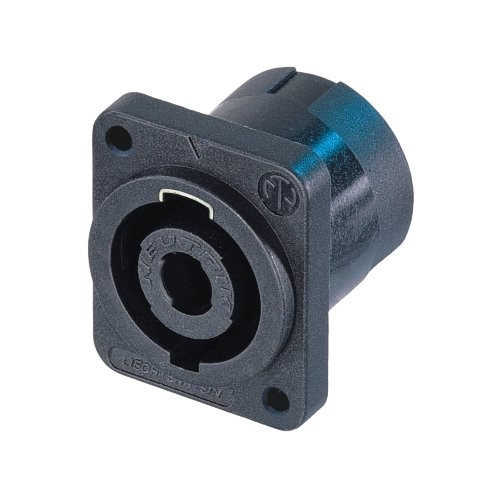

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not airtight.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features & Benefits
- NCC (Normally Closed Contact)
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
Product
Title
NL4MD-V-S
Connection Type
speakON
Gender
male
Electrical
Contact resistance
? 3 m? (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 G? (after dampheat)
Rated current per contact
20 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime
> 5000 mating cycles
Wiring
vertical PCB mount
Locking device
Quick Lock
Chassis shape
D
Layout
standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Shell
Polyamide (PA 6 30 % GR) black
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
