Neutrik NKPF-M-B-1.5
Neutrik NKPF-SR-B-5 powerCON TRUE1 cable
Description

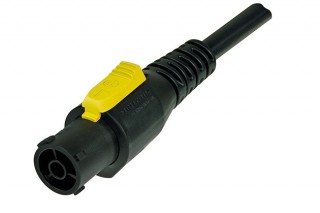

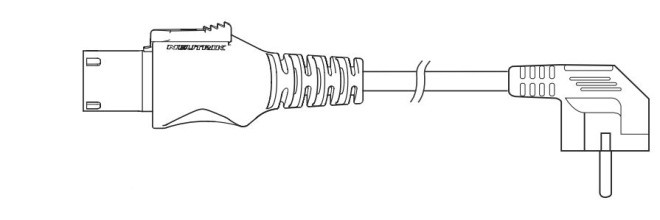

Ready-made power cord equipped with an overmolded Neutrik powerCON TRUE1 NAC3FX-W and a right angle Schuko connector. The cables are available in different lengths.
Cable Part Number Breakdown
powerCON TRUE1
The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in
combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Product specific
Plug / end termination
Overmolded Neutrik NAC3FC-W / SCHUKO RA
Approvals
ENEC, VDE
Standard length
1 m, 1.5 m, 2 m, 3 m, 5 m, 10 m
Cable type / color / Nom. O.D. / Conductor size
H07RN-F3G1.5 / black / 9.6 mm / 3 x 1.5 mm2
H05VV-F3G1.5 / black / 8.3 mm / 3 x 1.5 mm2
Current rating
16 A
Voltage rating
250 VAC
