Neutrik NKPF-SR-B-3 powerCON TRUE1 cable

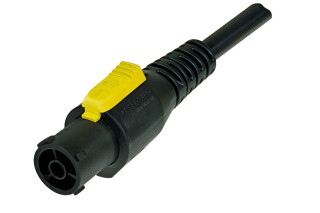

Neutrik NKPF-NC-B-1.5 powerCON TRUE1 cable
Description
Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5
mm2 or AWG 12.
The cables are equipped with overmolded Neutrik powerCON TRUE1 NAC3FX-W or NAC3MX-W. The other end is open for termination of local connectors. Overmolded
local connectors on request. The cables are available in different lengths.
Cable Part Number Breakdown
powerCON TRUE1
The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in
combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Product specific
Plug / end termination
Overmolded Neutrik NAC3FC-W or NAC3MX-W / stripped open end
Approvals
ENEC, VDE (16 A / 250 V) for H0*-cables
UL, cUL (20 A / 250 V) for SJ*-cables
Standard length
1 m, 1.5 m, 2 m, 3 m, 5 m
Cable type / color / Nom. O.D. / Conductor size
H07RN-F3G1.5 / black / 9.6 mm / 3 x 1.5 mm2
H05VV-F3G1.5 / black / 8.3 mm / 3 x 1.5 mm2
SJTOW / black / 11.3 mm / 3 x AWG 12
SJOOW / black / 11.3 mm / 3 x AWG 12
