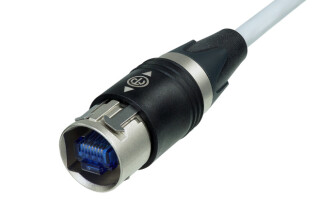

Neutrik NKE6S-2-WOC etherCON CAT6 cable
Description
The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.
Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.
Not compatible with CAT5 and CAT6A chassis connectors.
Features & Benefits
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
Ordering Information
|
NKE6S-* | Both cable ends with cable plug carrier, e.g. NKE6S-3 |
|
NKE6S-*-WOC | Only one cable end with cable plug carrier, e.g. NKE6S-3-WOC |
* available lengths: 1 m, 2 m, 3 m, 5 m, 10 m, 30 m
Product
Title
NKE6S-*
Gender
male
Electrical
Contact resistance
< 10 m?
Dielectric strength
1 kVdc
Frequencyrange
1 - 250 MHz
Insulation resistance
? 0.5 G?
Rated current per contact
1,5 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 40 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
8 x AWG 27/7 mm²
Locking device
Push-Pull
Material
Boot
Polyurethan
Contact plating
0.7 µm Au over 1.2 µm Ni plating
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class
IP 65
Temperature range
-10 °C to +60 °C
