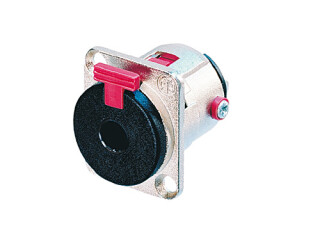

Neutrik NJ3FP6C Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
Category
Manufacturer
Item no.
- DON-NJ3FP6C
Shipping weight
- 0,10 kg
Contacts
Material
Shell
Gender
Description
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
Features & Benefits
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
Product
Title
NJ3FP6C
Connection Type
Jack
Gender
female
Electrical
Contact resistance
< 6 m? (inner) (initial)
Dielectric strength
1 kVdc
Insulation resistance
? 1 G? @ 500 V dc
Rated current per contact
10 A
Mechanical
Insertion force
< 20 N
Withdrawal force
< 20 N
Lifetime
> 10000 mating cycles
Locking force
> 80 N
Wiresize
1 mm²
Wiresize
18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
front
Chassis shape
D
Material
Contact plating
2 µm Ag
Contacts
Brass (CuZn37) (Ground)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Standard compliance
EIA RS 453, IEC 60603-11
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
