Neutrik NF2D-9 Phono (RCA) Chassis Connector
Description

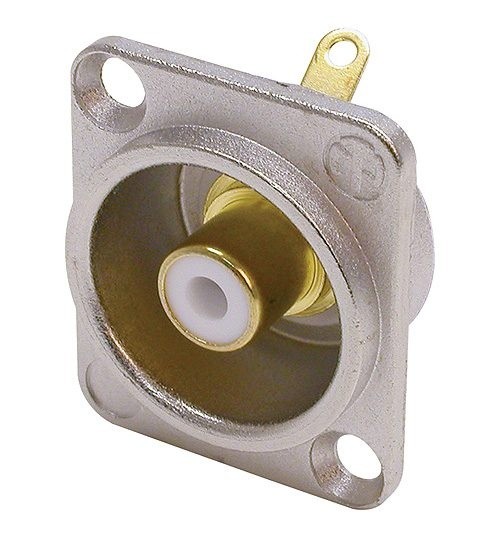

Phono socket in nickel D-shape housing, white isolation washers, solder version.
Features & Benefits
- Precisely machined to our demanding quality standards
- Gold plated contacts
Product
Title
NF2D-9
Connection Type
RCA
Gender
female
Electrical
Capacitance between contacts
? 9 pF
Contact resistance
<10 m?
Dielectric strength
0,5 kVdc
Insulation resistance
> 5 G?
Rated current per contact
depends on mating connector / A
Rated voltage
< 50 V
Mechanical
Lifetime
> 2000 mating cycles
Wiring
Solder contacts
Mounting direction
Front mounting
Chassis shape
D
Material
Contacts
Brass (CuZn39Pb3)
Shell
Zinc diecast (ZnAl4Cu1)
Contact plating
0.05 µm Au over 2 µm Ni
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 601-14
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
