Neutrik NE8MX6 etherCON CAT6A Cable Connector

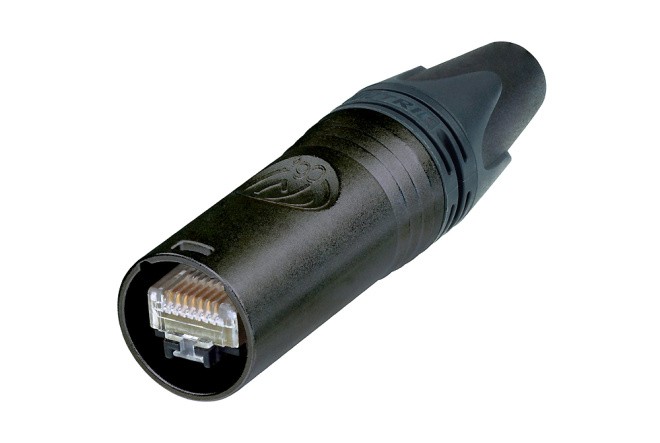

Neutrik NE8MX6-B etherCON CAT6A Cable Connector
Description
etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating
The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
- PoE+ compliant according to 802.3at Type2
- IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
Product
Title
NE8MX6-B
Gender
male
Electrical
Dielectric strength
1 kVdc
Insulation resistance
> 0.5 G?
Rated current per contact
1.5 A
Transmission performance
CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Cable O.D.
7.0 - 9.5 mm
Lifetime
> 1000 mating cycles
Wiresize
solid: AWG 24/1 - AWG 22/1
stranded: AWG 24/7 - AWG 22/7
stranded: AWG 24/7 - AWG 22/7
Locking device
Latch lock
Insulation diameter
> 1.10 - 1.60 mm
Material
Bushing
PA / PU
Contact plating
Au
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black
Strain relief
POM
Environmental
Protection class
IP 65 (in combination with NE8FDX-*6-W)
Temperature range
-40 °C to +70 °C
