Neutrik NE8MC RJ45 cable connector carrier for preassembled RJ45 plugs consisting of shell
Category
Manufacturer
Item no.
- DON-NE8MC
Shipping weight
- 0,10 kg
Series
Pins
Shell
Description

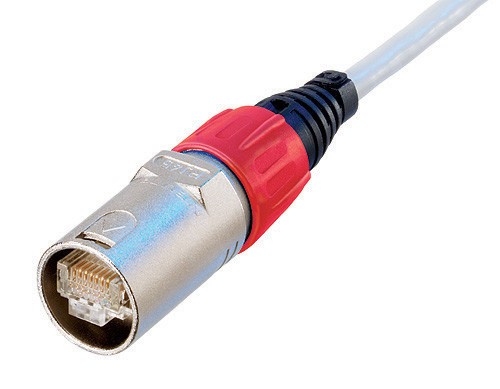

RJ45 cable connector carrier for preassembled RJ45 plugs consisting of shell, fixing disk, chuck, bushing and boot
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
Features & Benefits
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
- Allows assembly of preassembled conventional RJ45 cables
- Accessories include color coded boots in 9 standard colors
Product
Title
NE8MC
Gender
male
Mechanical
Cable O.D.
max. 8 mm 0.315'
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Material
Boot
Polyamide (PA 6)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Temperature range
-30 °C to +80 °C
Product specific
IMPORTANT!
Cable connectors do not include RJ 45 plug. RJ 45 cable assembly must be provided by end-user!
