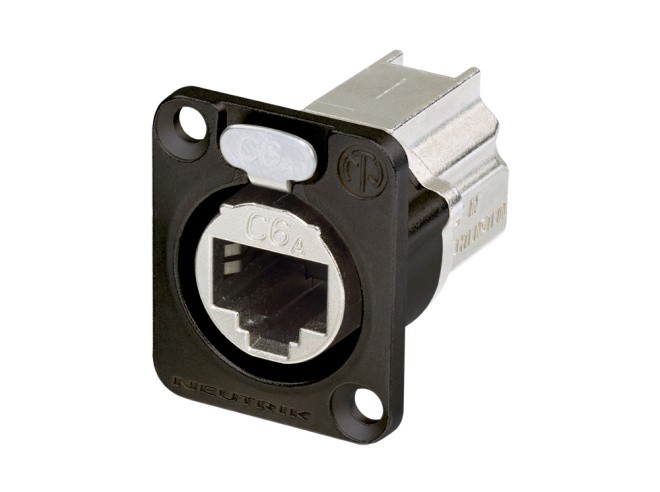

Neutrik NE8FDX-P6-B etherCON Chassis Connector CAT6A
Description
D-shape CAT6A panel connector, shielded, feedthrough, black housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE+ compliant according to 802.3at Type2
- Rugged latch lock system million fold proven
- Intermateable with the existing etherCON CAT5 range
- Shielded system - high noise immunity and EMI protection
Product
Title
NE8FDX-P6-B
Gender
female
Electrical
Dielectric strength
1 kVdc
Insulation resistance
> 0.5 G?
Rated current per contact
1.5 A
Transmission performance
CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Lifetime
> 1000 mating cycles
Wiring
Feedthrough
Locking device
Latch lock
Mounting direction
Front mounting
Material
Contact plating
Au
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black
Environmental
Flammability
UL 94 V-0
Temperature range
-40 °C to + 70 °C
