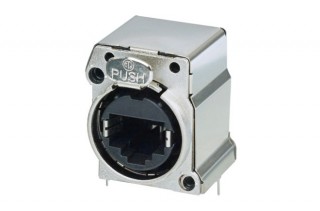

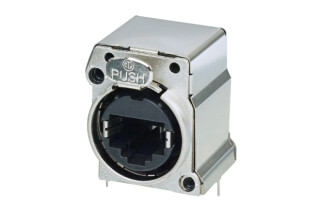

Neutrik NE8FBH-C5-S etherCON Chassis Connector B Series
Description
Horizontal PCB mount RJ45 receptacle, CAT5e, shielded, B-Series cutout with latch lock, max. panel thickness 3 mm
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The B-Series offers a space saving design and a rugged metal front plate.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Ground panel connection
- PoE+ compliant according to 802.3at Type2
- CAT5e performance according to ISO/IEC 11801 and TIA/EIA 568-C.2
Product
Title
NE8FBH-C5-S
Gender
female
Electrical
Contact resistance
< 10 m?
Dielectric strength
1 kVdc
Frequencyrange
1 - 100 MHz
Insulation resistance
> 0.5 G?
Rated current per contact
1.5 A
Rated voltage
< 50 V
Transmission performance
CAT5e, acc. TIA/EIA 586C.2, IEC11801
Power over Ethernet
PoE+ acc. IEEE 802.3at
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm (0.12'')
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
B
Material
Contact plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Locking element
Ck 67 steel, treated
Shell
PBT D202G30
Environmental
Flammability
UL 94 V-0
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
