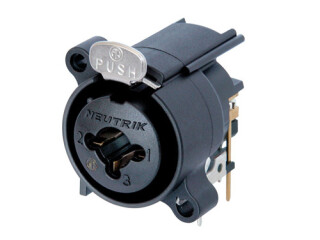

Neutrik NCJ6FA-H XLR Chassis Connector
Description
3 pole XLR female receptacle with 1/4" stereo jack, horizontal PCB mount
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack in the smallest available XLR housing.
Features & Benefits
- Combined 3 pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
- Dramatic space saving - 15% over the predecessor Combo
- Two connectors in one housing - substantial cost, material and labour saving
- Very low conductor capacitance - ideal for digital audio
- Front panel cut-out compatible with Neutrik XLR A Series
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NCJ6FA-H
Connection Type
Combo
Gender
female
Electrical
Contact resistance
< 10 m? (XLR)
Contact resistance
< 10 m? (jack & switching contacts)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
3 A (XLR)
Rated current per contact
3 A (Jack)
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 3 mm (0.12'')
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Mounting screw
A-screw
Material
Contact plating
gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
