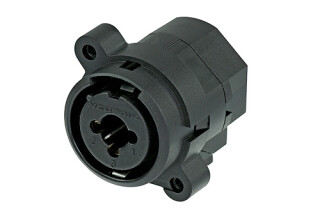

Neutrik NCJ10FI-H-0 XLR Chassis Connector
Description
3 pole XLR female receptacle with 1/4" switching stereo jack and switching ground contact, horizontal PCB mount, retention spring
XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
Product
Title
NCJ10FI-H-0
Connection Type
Combo
Gender
female
Electrical
Contact resistance
< 10 m? (XLR)
Contact resistance
< 20 m? (jack & switching contacts)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
7,5 A (XLR)
Rated current per contact
7,5 A (Jack)
Rated voltage
< 50 V
Switching contacts
3
Mechanical
Insertion force
? 25 N
Withdrawal force
? 25 N
Lifetime
> 1000 mating cycles
Locking force
> 20 N separating force
Panel thickness
max. 7 mm 0.27"
Mounting direction
Rear mounting
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Environmental
Temperature range
-30 °C to +80 °C
