Neutrik NC3FBHL1 XLR Chassis Connector

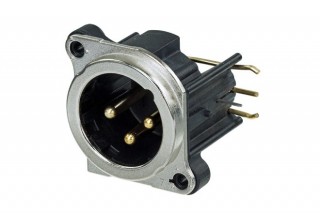

Neutrik NC3MBHR XLR Chassis Connector
Description
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, steel retention lug, lateral right PCB mount
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Housing flammability UL94V-0
Product
Title
NC3MBHR
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Laterial right PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
B
Mounting
B-Screw
Material
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Ring
Zinc diecast (ZnAl4Cu1)
Flange
Metal
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
