Neutrik NC3FAAV2 XLR Chassis Connector

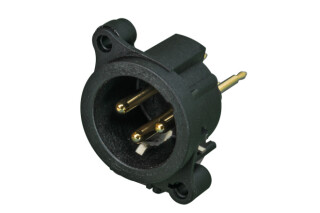

Neutrik NC3MAAV-0 XLR Chassis Connector
Description
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, vertical PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Flammability rating UL94HB. UL recognized component.
Features & Benefits
- Most cost-effective series
- "Tulip" type contact design with high contact pressure for highest durability
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Product
Title
NC3MAAV-0
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Ground contact connected to shell ground, but not to chassis and Pin 1
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Locking force
> 20 separating force N
Wiring
vertical PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Brass (CuZn35Pb2)
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
