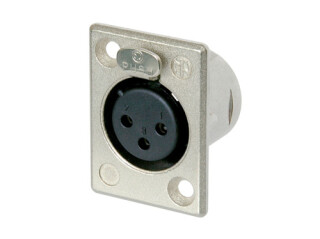

Neutrik NC3FP-1 XLR Chassis Classics Connector

4,69 €
(3,94 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 4 days
  • Shipping time: 5 - 6 workdays
Order Now
Category
Manufacturer
Item no.
  • NC3FP1-DON
Product weight
  • 0,01 kg
Shipping weight
  • 0,02 kg
Series
Pins
Shell
Gender

Interesting items

  1. Daka-Ware Classic LA-2A, UREI Replacement Bakelite Knob
    Daka-Ware Classic LA-2A, UREI Replacement Bakelite Knob

    Average Rating: 5/55
    8,23 €
    (6,92 € excl. vat)
    including VAT., plus shipping
  2. Sifam AL39WF Audio Level Presentor VU-Meter
    Sifam AL39WF Audio Level Presentor VU-Meter
    78,37 €
    (65,86 € excl. vat)
    including VAT., plus shipping

Description

3 pole female receptacle, solder contacts, Nickel housing, silver contacts

Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.



Features & Benefits

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
Product
Title
NC3FP-1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
Front mounting
Chassis shape
P
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
