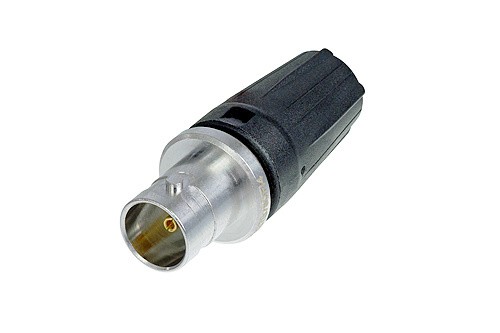

Neutrik NBTB75CFI4 rearTWIST cable jacks
Neutrik NBTB75CNN5 rearTWIST cable jacks
Description
Neutrik's BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet
locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny
cable jack is the perfect solution for extensions and Y-cables.
Like all Neutrik BNCs it offers a true 75 ? design and is perfectly suitable for HD applications.
Suitable cables:
Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (Bulk)
Crimp size:
Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
Features & Benefits
- Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HD requirements
- Perfect solution for Y-cables and extensions
- Optimized assembly for mutlicore or tiny cables
- Snug-fit center pin assembly provides tactile feedback
- Excellent cable protection and retention
- Precise machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Product
Title
NBTB75CNN5
Connection Type
BNC 75 ?
Gender
female
Electrical
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
0,75 kVdc
Impedance
75 ?
Insulation resistance
> 5 G?
Rated voltage
<50 V
VSWR
?1.050/>32 dB up to 1 GHz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
?1.065/>30 dB up to 2 GHz
?1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D.
3.1 mm
Cable retention
> 30 N (Center)
Crimp size
4,53 Hex crimp (shield) acc. IEC 60803 (die designation C)
Crimp size (pin)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert
PTFE
Shell
Brass (CuZn39Pb3)
Shell plating
Optalloy®
Environmental
Temperature range
-30 °C to +85 °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
