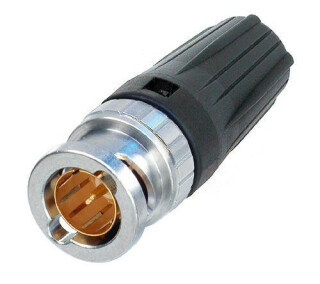

Neutrik NBNC75BHK7 rearTWIST HD BNC Cable Connector
Description
The rearTWIST HD BNC cable connector offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cable:
Canare L-3CFB, Canare L-3C2VS
Crimp size:
Pin: 1.6 mm (square) or 1.75 mm (hex)
Shield: 5.41 mm (hex)
Features & Benefits
- ?rearTWIST Principle? locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the ?head? of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Product
Title
NBNC75BHK7
Electrical
Signal Type
HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance
? 3 m? (inner)
Contact resistance
? 2 m? (outer)
Dielectric strength
1,5 kVdc
Insulation resistance
> 5 G?
Rated voltage
500 V
VSWR
? 1.050 / > 32 dB up to 1 GHz
? 1.065 / > 30 dB up to 2 GHz
? 1.100 / > 26 dB up to 3 GHz
? 1.065 / > 30 dB up to 2 GHz
? 1.100 / > 26 dB up to 3 GHz
Mechanical
Cable O.D.
4.3 mm
Cable retention
> 30 N (center)
Crimp size
5,41
Crimp size (pin)
1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) or 1,75 Hex crimp acc. IEC 60803 (die designation X)
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Cable anchoring
Jacket crimping
Environmental
Temperature range
-30°C - +85°C °C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
