Neutrik NAC3PX powerCON TRUE1 Chassis Connector

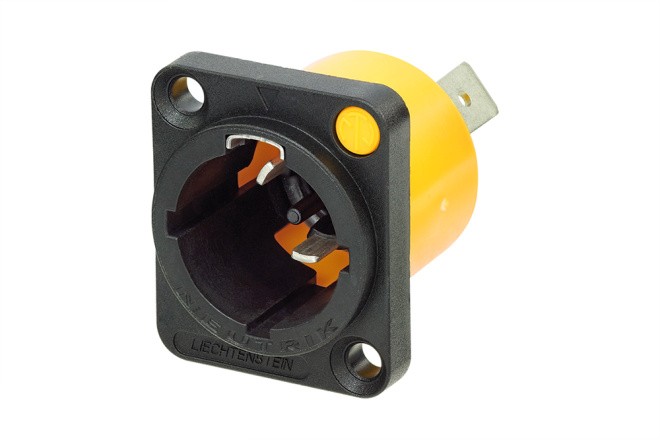

Neutrik NAC3MPX-WOT powerCON TRUE1 Chassis Connector
Description

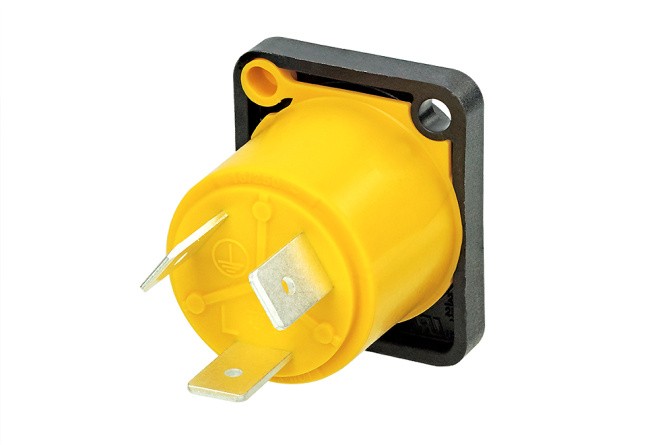

Appliance inlet connector, 1/4'' flat tab terminals, without insulation divider
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking
device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
Appliance inlet
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- UL recognized components
- IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
Product
Title
NAC3MPX-WOT
Electrical
Contact resistance
? 3 m?
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0.1 G? (after damp heat test)
Number of electronical contacts
2 + PE
Rated current per contact
16 A (USA: 20A)
Rated voltage
250 V ac
Mechanical
Lifetime
> 5000 mating cycles
Wiresize
2.5 mm²
Wiresize
12 AWG
Environmental
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C
