Neutrik NAC3MP-HC powerCON 32 A

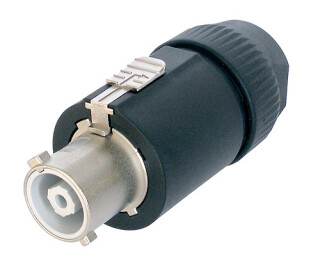

Neutrik NAC3FC-HC powerCON 32 A
Description
powerCON 32 A cable connector
The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.
Features & Benefits
- 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
- Premating contact for protective earth
- Fast and easy locking system to prevent unintentional disengagement
- Cable O.D. Range: 8 - 20 mm
- Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
- Excellent cable handling and protection
- Extremely robust and reliable
- VDE, UL, cUL and JET approved
Product
Title
NAC3FC-HC
Connection Type
powerCON
Gender
female
Electrical
Contact resistance
? 3 m?
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 10 G? (initial)
Rated current per contact
32 A (30A for cUL)
Rated voltage
250 V ac
Mechanical
Cable O.D.
8 - 20 mm
Lifetime
> 1000 mating cycles
Wiresize
2.5 - 6 mm²
Wiresize
14 - 10 AWG
Wiring
screw terminals
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 25 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Protection class
IP 20 (mated)
Safety Requirements
EN/IEC 61984
Solderability
Complies with IEC 68-2-20
Temperature range
-25 °C to +70 °C
