Neutrik MPM12-H miniCON Connector
Description

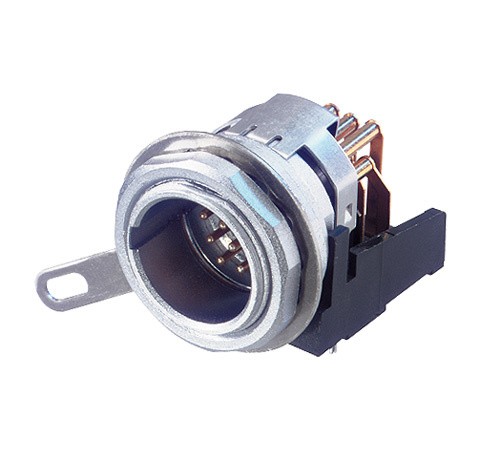

12-pole male chassis connector, horizontal PCB mount
The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.
Features & Benefits
- Velour chromium housing
- Push-pull self-locking system.
- Rugged, precisely machined all metal design
- Gold plated contacts
- Fully loaded receptacle for horizontal PCB mount
Product
Title
MPM12-H
Connection Type
miniCON
Gender
male
Electrical
Contact resistance
? 8 m?
Dielectric strength
1 kVdc
Insulation resistance
> 0.5 G?
Rated current per contact
3 A
Rated voltage
< 50 V
Mechanical
Wiresize
0,5 mm²
Wiresize
20 AWG
Wiring
Horizontal PCB mount
Locking device
Push-Pull
Mounting direction
Rear mounting
Chassis shape
14.10 mm
Material
Contact plating
0.2 µm AuCo
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6)
Shell
Zinc diecast (ZnAl4Cu1)
Environmental
Flammability
UL 94 V-0
Protection class
IP 5X
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
