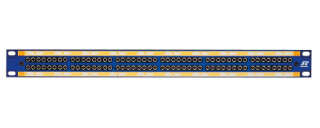

Neutrik MA96-1A Longframe Patch Panel
Neutrik MA96-1D Longframe Patch Panel
Description
96 way Bantam Patch Panel, blue front panel, grouped 12 x 8, extra rugged jack sockets allow customized normalling
Features & Benefits
- Robust designed patch panel to accept standard 4.4 mm Bantam jack connectors acc. MIL-P-642/13
- Fitted with 96 die-cast jack sockets
- Constructed from rigid aluminium extrusion which includes 2 integral slots for designation strips
- 96 channels grouped in two row 12 x 8 stereo jacks
Product
Title
MA96-1D
Connection Type
Patch Panel
Electrical
Signal Type
AES/EBU Signals (digital)
Contact resistance
< 24 m?
Contact resistance
< 16 m?
Dielectric strength
> 0.5 kVdc
Frequencyrange
DC to > 50 MHz
Insulation resistance
> 1 G? @ 500 V dc
Channel separation
> 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
> 40 dB @ 6 MHz, 110 terminated
Handles Phantom Power
Yes
Mechanical
Insertion force
< 25 N
Withdrawal force
> 10 N
Lifetime
> 20000 mating cycles
Locking device
Retention spring
Material
Contacts
Pallatium plated (Switch contacts)
Shell
diecast alloy (Jacks)
Shell plating
Blue front panel
Front panel
anodised Al
Lacing bar
powder coated steel
Environmental
Temperature range
-30 °C to +80 °C
Product specific
Dimensions
482 mm x 44 mm (19'' x 1U)
Depth
110 mm (4.33'')
Mating plug
4.4 mm (0.173'') Bantam plug acc. MIL-P-642/13
