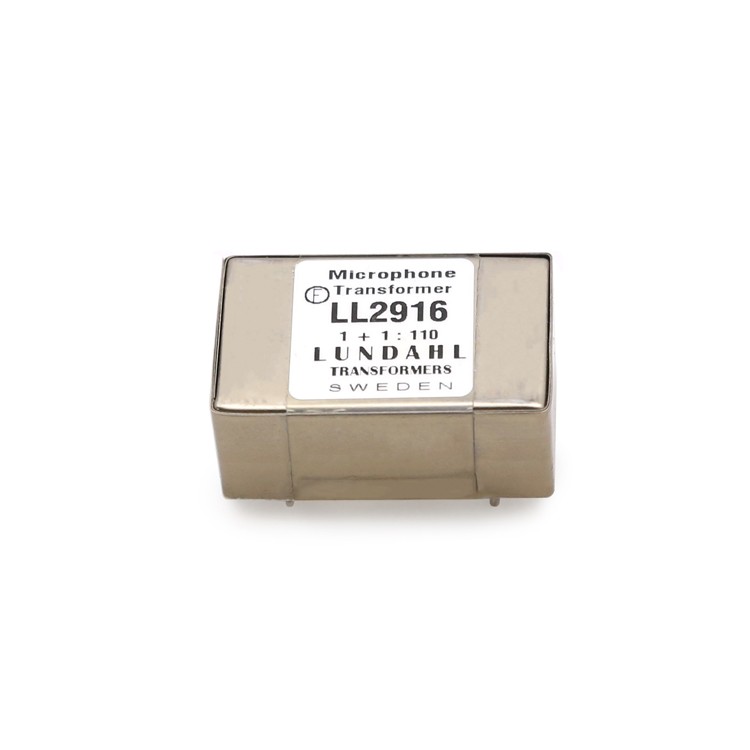

Lundahl LL2916 Audio transformer

91,59 €
(76,97 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
Category
Manufacturer
Item no.
  • LL2916
Product weight
  • 0,05 kg
Shipping weight
  • 0,10 kg
Compliance

Description

The LL2916 is a very high turns ratio transformers for active ribbon microphones. For low leakage inductance, the transformer is built up from two coils each with four winding sections. Transformer core is a mu metal lamination core. The transformer is pin compatible with our LL1927A, but the housing/footprint is bigger.

Turns ratio:        1 + 1 : 55 + 55

Dims: (Length x Width x Height above PCB (mm))

Weight:         47 g

Rec. PCB hole diameter:      1.5 mm

Housing:       Mu metal

Core:        Mu metal lamination core
