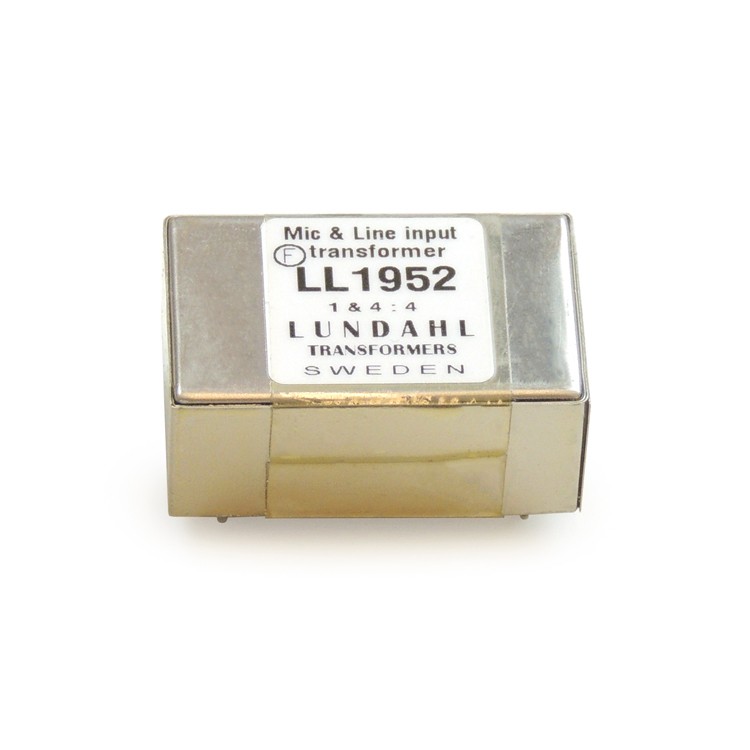

Lundahl LL1952 Microphone and Line Input Transformer
Description
Turns ratio: 1 : 4 (mic stepup) or 1 : 1 (line input)
The LL1952 is an input transformer with dual primaries. The purpose is to be able to handle both line level signals in a 1:1 configuration, or microphone level signals in a 1:4 configuration. This is useful where space is limited, for instance in combination with a hybrid connector (XLR and jack) input.
As usual for our input transformers, primary and secondary windings are separated by Faraday shields.
The transformer is encapsulated in a mu-metal housing for magnetic shielding.
