Lundahl LL1922 Audio transformer
Category
Manufacturer
Item no.
- LL1922
Product weight
- 0,00 kg
Shipping weight
- 0,00 kg
Gear
Application
Compliance
Interesting items
Description

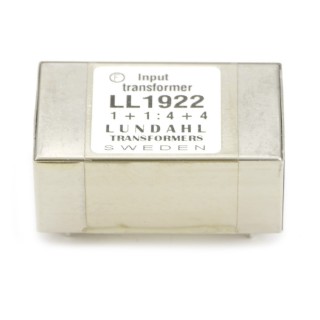

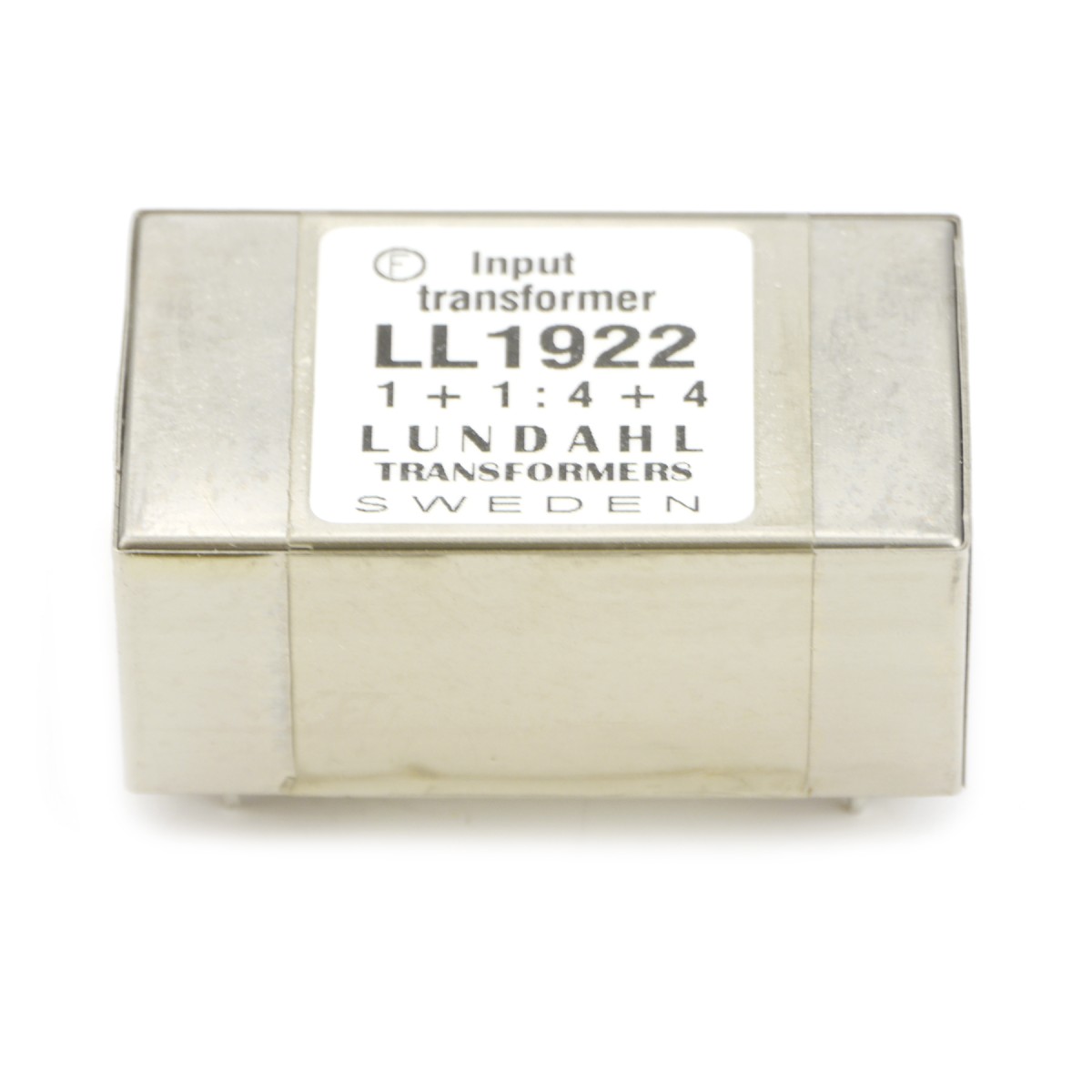

LL1922 is a high-level input transformer similar to the UTC LS-10. Thus it is designed for step-up input from 600 ohm sources
To reach the LS-10 freq. response in 1:8 applications with nondifferential amplifier input, the internal
Faraday shield must be tied to one of the source lines (the UTC LS-10 does not have any Faraday shield).
The two coils structure results in a high immunity to external magnetic fields from e.g. power supplies and motors.
Primary and secondary windings are separated by electrostatic shields. The core is a high permeability mu metal core.
The transformer is housed in a mu-metal can.
Don´s info: Can be used as UTC-A10X, LS-10X replacement
