Lundahl LL1679AM
Category
Manufacturer
Item no.
- LL1679AM
Product weight
- 2,50 kg
Shipping weight
- 2,50 kg
Description
LL1679 is an output transformer for tube amplifiers, available with different core air-gaps for different types of output stages. The transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance. This combined with a low capacitance coil winding technique results in a wide frequency range.
Turns Ratio: 22 + 12.5 + 22 + 12.5 : 2 + 1 + 2 + 1

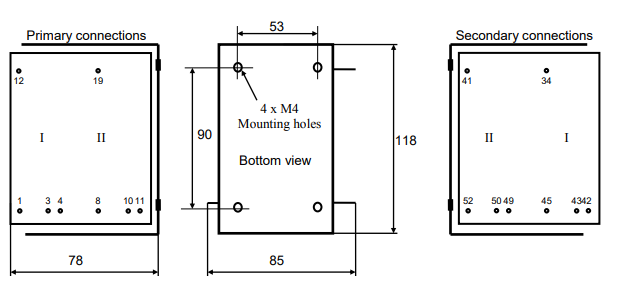

Pin spacing module: 5.08 mm (0.2")
Row spacing: 76mm approx.
Weight: 2.5 kg
Isolation between primary and secondary windings / between windings and core: 3 kV / 1.5 kV
