Lundahl LL1677AM amorphous core interstage transformer

Show original picture

316,40 €

(265,88 € excl. vat)

including VAT., plus shipping

Must be ordered. Ready for shipment in 14 days
Shipping time: 15 - 16 workdays

Order Now quantity: + (Increase quantity) - (Decrease quantity)

Category

Anode chokes, interstage, headphone & line output transformers

Manufacturer

Lundahl

Item no.

LL1677AM

Product weight

0,75 kg

Shipping weight

0,75 kg

Description

LL1677 is a high current interstage transformer with a 1:2 step up ratio. The transformer is wound with a special low capacitance winding technique to achieve best high frequency performance. The transformer has a special high flux, low distortion audio C-core of our own production. For the LL1677, the core air gap is chosen such that the denoted DC current (80mA for a LL1677/80mA) generates a no signal core flux density of 1.2 Tesla when used with all primaries in series. This leaves a flux ensity swing of 0.4 T for the signal.

Weight 0.75 Kg

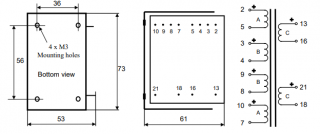

Turns ratio 1+1+1+1 : 4 + 4

Max. current through any single primary section: 100 mA

Static resistance, Winding A 88 ohms

Static resistance, winding B 69 ohms

Static resistance, winding C 800 ohms

Isolation between primary and secondary windings / between windings and core: 4 kV / 2 kV
