Lundahl LL1638AM

55764,36 ¥
(46861,39 ¥ excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Shipping time: 15 - 16 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1638AM
Product weight
  • 1,35 kg
Shipping weight
  • 1,35 kg

Description

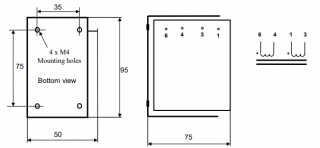

The LL1638 is a 2 coils choke for tube amplifier anode supply. The choke is available with different core air-gap, which results in different inductance and DC current capability. The coil is wound using our standard high internal isolation technique with isolation foil between each copper layer. The core is an audio C-core of our own production.

Weight:          1.35 kg

Static resistance of each winding:     18 ?

Isolation between windings / between windings and core:   4 kV / 2 kV
