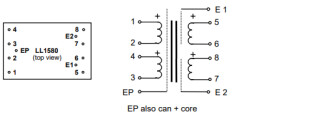

Lundahl LL1580 Audio transformer

Price on application
  • Must be ordered. Ready for shipment in 7 days
Category
Manufacturer
Item no.
  • DALL1580
Product weight
  • 0,07 kg
Shipping weight
  • 0,10 kg
Compliance

Description

The LL1580 is designed for splitting signals in application where large and noisy ground differences appear, but where external magnetic fields are under control. By careful design, including double electrostatic shields, the capacative coupling between the different parts of the transformer is kept to a minimum.

Turns ratio: 1 + 1 : 1 + 1

Spacing between pins    5.08 mm  (0.2")

Spacing between rows of pins  27.94 mm  (1.1")

Offset of earth pin from adjacent row: 2.54 mm (0.1")

Recommended PCB hole diameter: 1.5 mm

Dimensions (Max. L x W x H above PCB(mm)) 38 x 24 x 20.5

Weight: 61 g

Static resistance of each primary: 40 ?

Static resistance of each secondary: 49 ?
