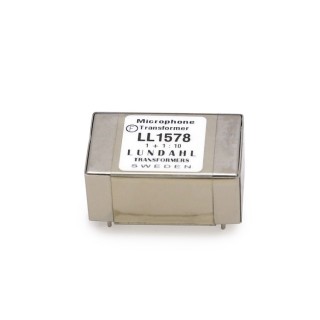

Lundahl LL1578 Audio transformer

87,91 €
(73,87 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 7 days
Category
Manufacturer
Item no.
  • LL1578
Product weight
  • 0,05 kg
Shipping weight
  • 0,10 kg
Compliance

Description

The LL1578 and the LL1578XL are high performance microphone input transformers/line-box transformers with high permeability mu-metal cores and high bandwidth coils. The LL1578 and the LL1578XL use the same pin-out as our well known microphone transformer LL1538.

Turns ratio   1 + 1 : 10

Weight:  46 g

Spacing between pins    5.08 mm  (0.2")

Spacing between rows of pins   27.94 mm  (1.1")

Recommended PCB hole diameter   1.5 mm

Isolation between windings / between windings and shield  4 kV / 2 kV

Dimensions Max. Length x Width x Height above PCB (mm)  38 x 24 x 17

Static Resistance of each primary:  12 ohms
Static Resistance of secondary:  880 ohms
