Lundahl LL1560 Audio transformer
Category
Manufacturer
Item no.
- LL1560
Product weight
- 0,13 kg
Shipping weight
- 0,10 kg
Application
Compliance
Description

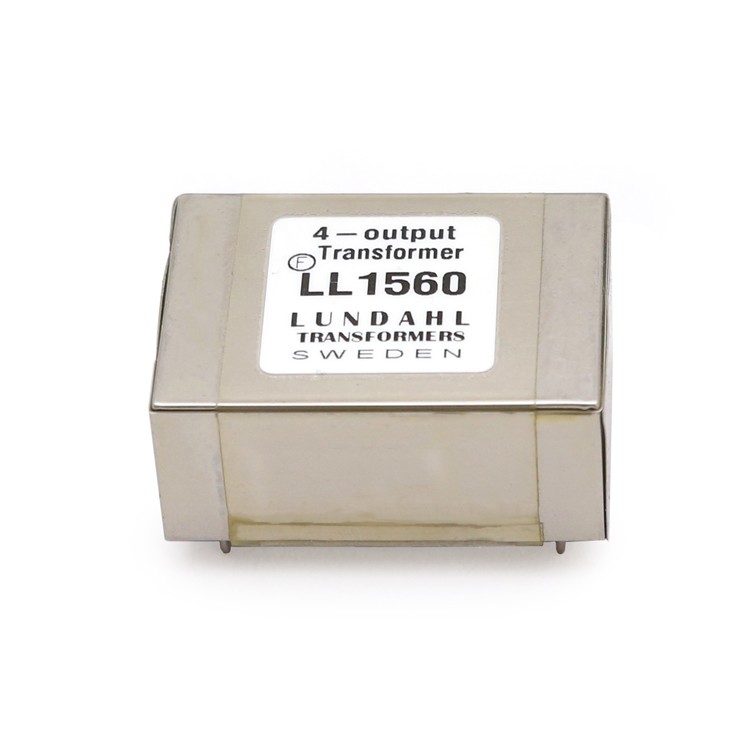

LL1560 is an audio transformer specially built for active splitting. Each of the four secondary windings is surrounded by primary winding parts. This results in a low leakage inductance and ensures that output signal is maintained on three of the secondary windings even if one is short-circuited, provided of course that driving power is available. The primary windings should be used in parallel.
Turns ratio: 2 + 2 : 1 + 1 + 1 + 1
Dims: (Length x Width x Height above PCB (mm)) 47 x 34 x 23
Housing: Mu-metal
Core: Audio C-core
Spacing between pins: 2.54 mm (0.1")
Spacing between rows of pins: 35.56 mm (1.4")
Weight: 130 g
Rec. PCB hole diameter: 1.5 mm
