Hammond Multi-Tap PRI, 157 VA, 50/60HZ 376XP
Description
- A perfect match to our 1650P potted output transformers.
- V.A: 157
- A.C. High Voltage Secondary R.M.S: 640V C.T. @ 173ma.
- Bias Tap on High Voltage secondary with C.T Grounded (VAC): 50
- Filament #1 (VAC): 5V C.T. @ 3A
- Filament #2 (VAC): 6.3V C.T. @ 5A
- A perfect match to our 1650P potted output transformers.

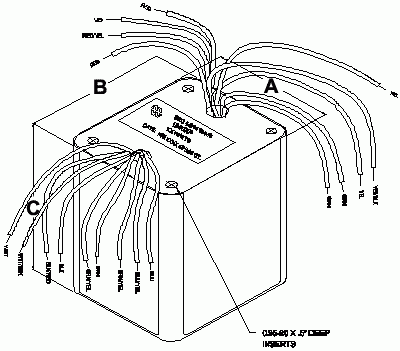

- Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
- Mounting hardware included.

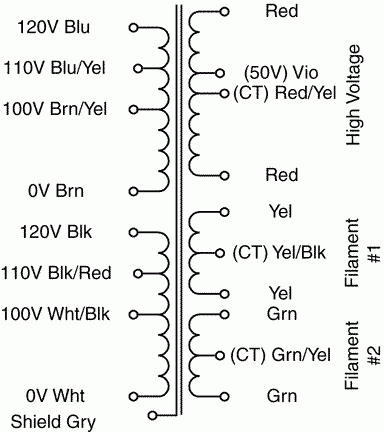

- Primary: Universal - 100, 110, 120, 200, 220, 240 VAC 50/60 Hz.
- Bias Tap: 50 VAC tap from high voltage secondary C.T.
- Highpot tested: 2,000 VAC
- Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries (shield is internally grounded to the end bell).
- Windings: Concentric wound for low stray field and low noise
- Finish: Black powder paint to match our 1650P series of potted output transformers
- Units can be run full wave bridge or full wave C.T.
- c UL us recognized (E207860)
