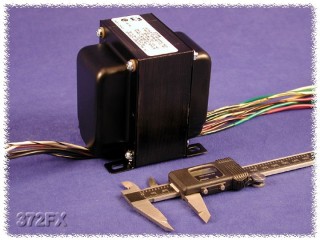

Hammond Multi-Tap PRI, 136VA, 50/60 HZ 374AX

143,47 €

(120,56 € excl. vat)

Recommended retail price: 154,57 €

Scale price:

* Price per unit

including VAT., plus shipping

Order Now quantity: + (Increase quantity) - (Decrease quantity) Stk

Category

Manufacturer

Item no.

Product weight

Shipping weight

Description

Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz.
- NOTE: units are designed to operate with BOTH primary windings engaged.
- See primary wiring information under resources.
V.A: 136
A.C. High Voltage Secondary R.M.S: 720V C.T. @ 138ma.
Bias Tap on High Voltage secondary with C.T Grounded (VAC): 50
Filament #1 (VAC): 5V C.T. @ 3A
Filament #2 (VAC): 6.3V C.T. @ 3.5A

Primary: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz.
- NOTE: units are designed to operate with BOTH primary windings engaged.
- See primary wiring information under resources.
Bias Tap: 50 VAC tap from high voltage secondary C.T. (except part number 379WX - uses a separate 60VAC 0.2 Amp winding).
Highpot tested: 2,000 VAC
Faraday Copper Primary Shield: Our electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries (shield is internally grounded to the end bell).
Windings: Concentric wound for low stray field and low noise.
Models: This series is an upgrade from our entire 200 Series range of units PLUS 2 models designed specifically for 300B tubes (Part Number 300BX) and 2A3 tubes (Part Number 302AX).
Finish: Black powder paint to match our 1650 series of output transformers Units can be run full wave bridge or full wave C.T.
Conservative designs - CSA certified (209651).
For a more economical, open frame, universal primary - check out our 260 Series.
For that "high end" look & feel check out our potted versions - the 300P Series.
