Hammond Audio Transformer Driver Chassis Mount 145N
Description
- Small, economical, open, two hole horizontal bracket mount.
- Application: Driver
- Nominal Impedance - Primary: 10000
- Nominal Impedance - Secondary: 2000 ct
- Primary D.C:5
- D.C. Resistance - Primary: 700
- D.C. Resistance - Secondary: 89
- Output: 135

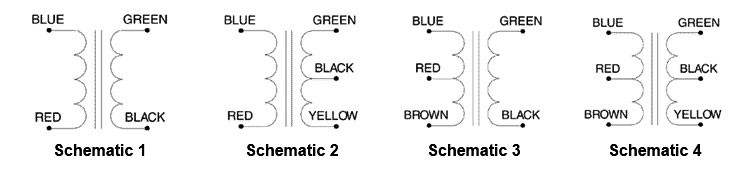

- Schematic: 2
- Small, economical, open, two hole horizontal bracket mount.
- Insulated, color coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
- For a similar, P.C. board mount version, refer to the 148 and 149 series.
- Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
- When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower, conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
- Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).
