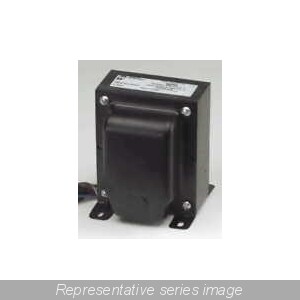

Hammond Audio Transformer 4.3K OHM 60 WATT 1650N
Manufacturer
Item no.
- HA-1650N
Product weight
- 3,63 kg
Shipping weight
- 3,63 kg
Interesting items
Description
Features
- Please see our NEW & improved versions (easy wire secondary series).
- Designed for push-pull tube output circuits.
- Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
- Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
- Insulated flexible leads 8" min.
- Manufactured with plastic coil forms for coil support and insulation.
- Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
- Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
- For the "ultimate" in Push-Pull output see our line of epoxy potted output transformers.
