Hammond 1.2mH @25A SER, 0.3mH @50A PAR 196D25
Category
Manufacturer
Item no.
- HA-196D25
Product weight
- 2,93 kg
Shipping weight
- 2,93 kg
Description

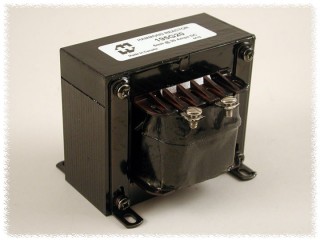

- Open core & coil, 4-slot bracket mounting chokes.
- Parallel Connected Inductance mH: 0.3
- D.C. Current (Amps): 50
- Series Connected Inductance mH: 1.2
- D.C. Current (Amps): 25
- Resistance (Each Winding) (Ohms): 0.005
- Open core & coil, 4-slot bracket mounting chokes.
- Tolerance of 15% on both inductance & resistance.
- Inductances measured at rated D.C. current.
- The "195" series is single coil
- The "196" series is dual coil - allowing more versatility
- Recommended maximum operating voltage 600 VAC (winding to core).
- Hipot tested at 2,500 VAC
- Connections are made to a screw terminal or heavy copper tabs with holes
- Perfect for high current power supply filtering.
