Gotham Audio 300m Coil, Type 10206 GAC-2 foil CE Foil shielded Audiocable FRNC (Halogen free)

Show original picture

204,85 €

(172,14 € excl. vat)

including VAT., plus shipping

Must be ordered. Ready for shipment in 14 days
Shipping time: 15 - 16 workdays

Order Now quantity: + (Increase quantity) - (Decrease quantity) Stk

Category

Gotham

Item no.

10206

Product weight

4,45 kg

Shipping weight

4,45 kg

Description

Flameretarded FRNC Jacket (IEC 60332-3-24) and EN50266-2-4 Halogen Free IEC 60754-2 and DIN EN 50267-2-21 Flammwidrig, Noncorrosive, Halogenfrei Foliengeschirmtes, halogenfreies Installationskabel. Ideal for Festinstallationen and Rackverbindungen. Das gewählte Material is nicht korrosiv and erlaubt daher eine Installation whichses cables in öffentlichen Gebäuden, wo halogenfreie Produkte vorgeschrieben are. Der Mantel is aus flammwidrigem FRNC Polyolefin.

Balanced 2 Conductor Installation Foil Shielded GAC-2/foil CE FRNC 300 m Black

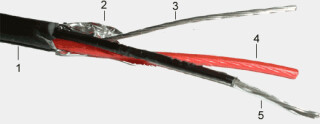

Cable specifications:
1 = Sheath:	FRNC Compound, Ø 3.0 mm, schwarz
2 = Shield	Aluminium Folie
3 = Beilauflitze	CU-Drähte, verzinnt, 7 x 0.22mm (0.22 mm²)
4 = isolation	Polyolefin, Ø 1.1 mm
5 = Conductor	CU-Litze, verzinnt 7 x 0.20 mm (0.22 mm²)
Technische Daten:
Conductor resistance:		< 85 ohm/km
Shieldresistance:		< 65 Ohm/km
Capacity:	Strand/Strand	< 75 nF/km
	Strand/Shield	< 141 nF/km
Test voltage:	Strand/Strand	500 veff
	Strand/Shield	1500 veff
Temperature range:	flexi-installation:	-5° to +50° C
	fix-installation:	-30° to +70° C
