Gotham Audio 200m Coil, Type 10601 GAC-2 AES Flexible, professional Cable für AES/EBU-& DMX Signale
Description
Flexibles, professionelles cable for AES/EBU- and DMX Signale. Für Verwendung mit XLR-Steckern. Auch geeignet for Installations mit langen cablelängen (> 100m). Erstklassiges Industriestandardkabel aber unter Verwendung from 2 shieldingen and höchster Kupferqualität (LCOF).
Verwendung whichses cables auch for analoge Audiosignale (NF) geeignet
Balanced Flexible Digital AES 110 Ohm GAC-2 AES 200 m Purple

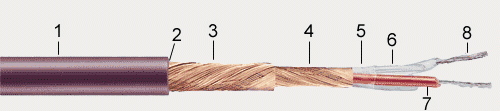

Cable specifications: |
||
| 1 = Sheath: | PVC, Ø 6.0mm, purpur | |
| 2 = ZwischenSheath | Viskose | |
| 3 = 1. spiral shielding | Pure CU-Wires (0.10mm), 100% shielded | |
| 4 = 2. spiral shielding | Pure CU-Wires (0.10mm), 100% shielded | |
| 5 = Kunststoffolie: | PVC | |
| 6 = Strang (2): | 'PE', rot und white braded | |
| 7 = isolation: | Schaum PE, 2.0mm | |
| 8 = Conductor: | CU-Litze verzinnt, 7 x 0.25 mm (0.34mm²) | |
Technische Daten: |
||
| Conductor resistance: | < 60 ohm/km | |
| Betriebsdämpfung: | 1 MHz: | 2 dB/100m |
| Capacity: | 800 Hz: | < 44 nF/km |
| Strand/Strand: | < 105 nF/km | |
| isolationsresistance: | > 10 GOhm/km | |
| Impedanz: | 110 Ohm | |
| Test voltage: | Strand/Strand | 500 veff |
| Strand/Shield | 2000 veff | |
| Temperature range: | flexi-installation: | -5° to +50° C |
| fix-installation: | -30° to +70° C | |
