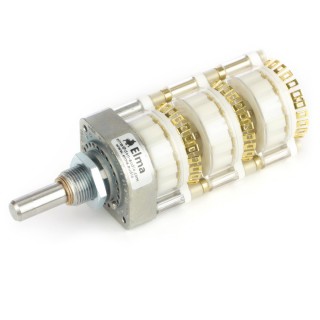

Elma Rotary switch Type 04 Eyelets 3 Wafers 3 x 12 Non-Shorting °30, 04-3124

5 5

Category

Rotary switches

Manufacturer

Elma

Item no.

DA04-3124

Shipping weight

0,10 kg

Switching mode

Non-Shorting

Pin type

Eyelets

Description

Very robust and versatile 12 Position 3 Wafer Selector Switch with 3 poles.

Very robust and versatile 12 Position Multi Wafer Selector Switch.

Up to 12 Positions multi wafer selector switch with 3 poles
Very robust and versatile
25,000 switching cycles with up to 20.0 Ncm switching torque
Gold plated contacts: 3 micron
Robust metal housing with metal shaft
Optional IP68 front panel sealing
Operating temperature range: -40 to +85°C
Various options and customization
Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
6mm shaft

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
