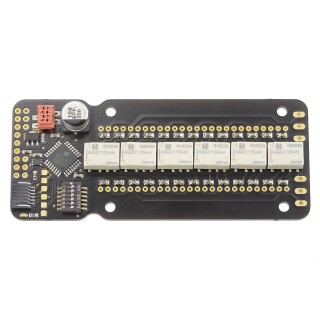

Elma Relay Attenuator switch, 2 Channels, 64 steps SMT populated, thin-film, 100k

Price as configured
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 28 days
Please select
  • THT, SMT Option

Display Module Set
Display Module Set
IR Remote
IR Remote

* Mandatory fields

Category
Manufacturer
Item no.
  • DA-RELATT-100-64
Product weight
  • 0,01 kg
Shipping weight
  • 0,01 kg
Function
Compliance

Interesting items

  1. Elma IR Remote Unit
    Elma IR Remote Unit
    35,89 €
    (30,16 € excl. vat)
    including VAT., plus shipping
  2. LED Display Module
    LED Display Module

    Average Rating: 5/55
    51,16 €
    (42,99 € excl. vat)
    including VAT., plus shipping

Description

IR remoteable relay Attenuator switch with optionale LED Display and Motor. Can also be set to work as relay Selector switch.

The Relay Attenuator (new Version) is an extremely versatile ladder type, 6-stage stereo attenuator with constant input impedance featuring 33 attenuation positions with infinite or 64 positions without infinite. The Relay Attenuator can also set to work as Relay Selector switch. The tiny module can be locally operated by encoder or motorized potentiometer, while providing an IR remote option with teach-in feature. It can also be directly UART bus controlled by a host system for distributed multi-module operation, featuring 16 selectable node addresses so up to 16 modules can be operated in a multi-module configuration. The attenuator comes with either pre-populated SMT resistors or it can be populated by the customer using THT resistors. The on-board DIP switch is either used to set the baud rate and the node address (host control), or to configure various functions in the local mode or to select the node address in the host mode. For position indication, especially when operated by an encoder, a display module is also available.

Feautures
  • Ladder type, stackable up to 6 stereo stages with constant input impedance
  • 6 Input to 1 Output Selector by using 6 audio grade relays
  • Switchable between Selector or Attenuator by DIP #3 Switch
  • Controllable by an Encorder, IR remote left and right buttons or Potentiometer (X4 limited to 6 or less positions can also be used.)
  • Selectable between 33 and 64 attenuation positions
  • Populated with SMT resistors or THT (Standard)
  • Motorized encoder or potentiometer and IR controll
  • UART Control option with selectable node address
  • Optional display module
  • For home and studio applications

Functions and add-ons

Elma Attenuator switch application example


Possible Customization

  • Resistor values and tapers
  • IR protocol, funtion and cabling

Customer-Pics

Log in to upload a pic!


At moment there are no customer pics for this product.

Product Tags

Ratings from users

(This product has got No Reviews)

Share your experience with other customers

Recommended accessories:


  1. Bourns Motorized Potentiometer for Elma Relay Attenuator
    24,74 €
    (20,79 € excl. vat)
    including VAT., plus shipping
  2. Elma IR Remote Unit
    Elma IR Remote Unit
    35,89 €
    (30,16 € excl. vat)
    including VAT., plus shipping
  3. LED Display Module
    LED Display Module

    Average Rating: 5/55
    51,16 €
    (42,99 € excl. vat)
    including VAT., plus shipping
* All prices are final prices in EUR including the valid value added tax/VAT.
