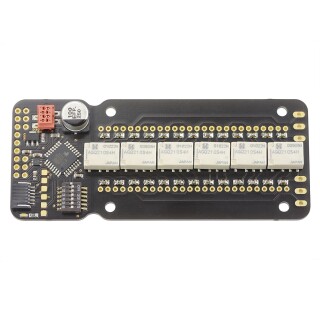

Elma Relay Attenuator switch, 2 Channels SMT populated, thin-film, 10K 64 positions

Show original picture

Price as configured

including VAT., plus shipping

Must be ordered. Ready for shipment in 28 days

Please select

THT, SMT Option
1. SMT populated, 10k 33 positions » 255,45 €
2. SMT populated, 10K 64 positions » 0,00 €
3. SMT populated, 50k 64 positions » 296,48 €
4. SMT populated, 100k 64 positions » 0,00 €
5. THT without resistors » 256,36 €

Display Module Set

IR Remote

1x Elma IR Remote Unit +35,89 €

* Mandatory fields

Category

Elma

Manufacturer

Elma

Item no.

DA-RELATT-010-64

Product weight

0,01 kg

Shipping weight

0,10 kg

Function

Interesting items

Elma IR Remote Unit

35,89 €
(30,16 € excl. vat)
including VAT., plus shipping
Bourns Motorized Potentiometer for Elma Relay Attenuator

24,74 €
(20,79 € excl. vat)
including VAT., plus shipping

Description

IR remoteable relay switch with optionale LED Display and Motor

The Relay Attenuator (new Version) is an extremely versatile ladder type, 6-stage stereo attenuator with constant input impedance featuring 64 positions without infinite position. The tiny module can be locally operated by encoder or motorized potentiometer, while providing an IR remote option with teach-in feature. It can also be directly UART bus controlled by a host system for distributed multi-module operation, featuring 16 selectable node addresses so up to 16 modules can be operated in a multi-module configuration. The attenuator comes with either pre-populated SMT resistors or it can be populated by the customer using THT resistors. The on-board DIP switch is either used to set the baud rate and the node address (host control), or to configure various functions in the local mode or to select the node address in the host mode. For position indication, especially when operated by an encoder, a display module is also available.

Feautures

Ladder type, stackable up to 6 stereo stages with constant input impedance
64 attenuation positions
Populated with audiophile low-noise, high-precise thin-film resistors SMT resistors
Optional motorized encoder or potentiometer and IR controll
UART Control option with selectable node address
Optional display module
For home and studio applications
