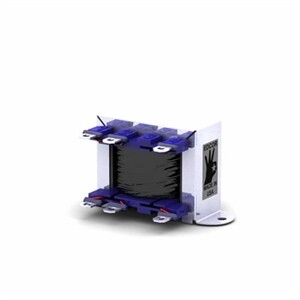

Edcor XSM2,4K/600

59,38 €
(49,90 € excl. vat)
Scale price:
  • from 10: 58,19 €*
  • from 20: 57,01 €*
  • from 50: 55,82 €*
  • from 100: 53,44 €*
* Price per unit
Scale price:
  • from 10: 58,19 €*
  • from 20: 57,01 €*
  • from 50: 55,82 €*
  • from 100: 53,44 €*
* Price per unit
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • EDCXSM2,4K600
Product weight
  • 0,34 kg
Shipping weight
  • 0,40 kg
Compliance

Interesting items

  1. Audio Toroidal Transformer Mila - Sec.: 250vct, 6.3vct, 48v
    Audio Toroidal Transformer "Mila" - Sec.: 250vct, 6.3vct, 48v
    Average Rating: 5/55
    89,00 €
    (74,79 € excl. vat)
    including VAT., plus shipping
  2. VU-Meter S-500 dB Compression White
    VU-Meter S-500 dB Compression White
    Average Rating: 5/55
    43,70 €
    (36,73 € excl. vat)
    including VAT., plus shipping

Description

Products specifications
Schematic
Wattage 2.5W
Input Maximum Voltage 50Vrms
Turns Ratio 2:1
Primary (input) Impedance 2.4K Ohms
Secondary (output) Impedance 600 Ohms
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Insertion Loss 0.5 dB
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination 0.187" (3/16") quick disconnects
Mounting Zinc plated steel channel/frame
Weight 0.75 lbs.
Dimensions 2.815" (L) x 1.79" (W) x 1.64" (H)
Dimensional Drawing 15000-EI625-075-18
Manual WSM Series Manual
