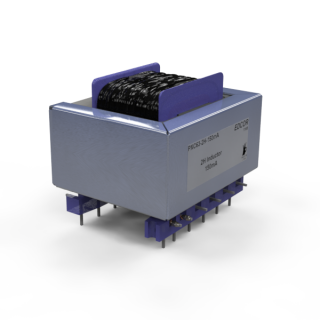

Edcor PC Mounted 2H at 150mA DC choke
Category
Manufacturer
Item no.
- PXC63-2H-150mA
Product weight
- 0,30 kg
Shipping weight
- 0,30 kg
Description
Design
Mathematically designed to produce 2H at 150mA DC. A lower DC current will slightly increase inductance.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
EDCOR's royal blue bobbin with black finishing tape.
Termination/Mounting
This unit is designed for printed circuit borads. For footprint and suggested hole and pad size please see the dimensional drawing.
Mathematically designed to produce 2H at 150mA DC. A lower DC current will slightly increase inductance.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
EDCOR's royal blue bobbin with black finishing tape.
Termination/Mounting
This unit is designed for printed circuit borads. For footprint and suggested hole and pad size please see the dimensional drawing.
