Edcor MX12cs transformer
Category
Manufacturer
Item no.
- ED-MX12CS
Product weight
- 0,34 kg
Shipping weight
- 0,40 kg
Compliance
Interesting items
Description
1:12 Microphone level signal transformer
Design
Mathematically designed to produce the turns ratio for microphone level signal needed.
Primary (Input)
Designed for a balanced or unbalanced microphone level signal.
Secondary (Output)Designed for a balanced or unbalanced microphone level signal.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest Super "Q" 80% Nickel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
EDCOR's royal blue bobbin with black finishing tape.
Sheilding
This unit has an outer copper shielding around winding and core to help eliminate outside interference.
Termination/Mounting
This unit is designed for printed circuit board mounting. For footprint and suggested hole and pad size please see the dimensional drawing.
Products specifications

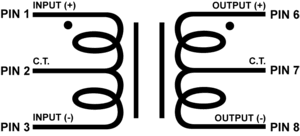

| Schematic |  |
| Input Maximum Voltage | 0.25Vrms |
| Turns Ratio | 1:1 |
| Primary (input) Impedance | 30K Ohms |
| Primary (input) DCR | 45 Ohms |
| Primary (input) Inductance | 3.5H |
| Secondary (output) DCR | 50 Ohms |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Plot |
 Frequency Response/THD+N
|
| Insertion Loss | 0.5 dB |
| Copper Shielding | Yes |
| Bobbin Material | Glass Filled Nylon 6/6 |
| Flamability Rating | Class B 130°C |
| Core Material | Super Q 80 Nickel (80%) |
| Termination | 10 pin PCB |
| Mounting | Printed circuit board mounted (PCB) |
| Weight | 0.08 lbs. |
| Dimensions | 1.03" (L) x 1.045" (W) x 0.8" (H) |
| Dimensional Drawing |
15000-EI025-025-P10
|
| Manual |
MXcs Series Manual
|
