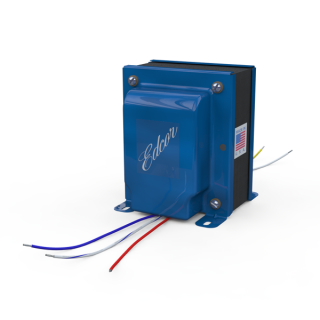

Edcor CXSE25-8-2.5K single ended tube output transformer

332,28 $
(279,23 $ excl. vat)
including VAT., plus shipping
  • In stock!
  • Stock: 5 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • CXSE25-8-2.5K
Product weight
  • 4,42 kg
Shipping weight
  • 4,42 kg

Interesting items

  1. Elma Rotary switch Type 04 Eyelets 1 Wafer 3 x 4...
    Elma Rotary switch Type 04 Eyelets 1 Wafer 3 x 4 Non-Shorting °30, 04-1344
    Average Rating: 5/55
    68,52 $
    (57,58 $ excl. vat)
    including VAT., plus shipping

Description

25W, single ended tube output transformer for 2.5K Ohms to a specified output.
Wattage 25W
Max. Current 200mA
Primary (input) Impedance 2.5K Ohms
Screen/Grid Tap 40%
Secondary (output) Impedance 8 Ohms
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Bobbin Material Nylon 6/6 GF-30
Flamability Rating Class B 130°C
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer) Clear air dry polyester varnish
Termination UL1015, 20 ga. lead wire
Mounting Powder coated steel end bells
Color RAL 5010 Gentian Blue
Weight 9.75 lbs.
Compliance RoHS & REACH
