Classi MEQ Passiver Equalizer PCB - Konfigurator

Originalbild anzeigen

Preis wie konfiguriert:
30,72 €

UVP des Herstellers: 49,95 €

Sie sparen 38%, also 19,23 €

inkl. USt., zzgl. Versand

sofort verfügbar
Lieferzeit: 1 - 2 Tage

PEQ OPA Gainstage Kit

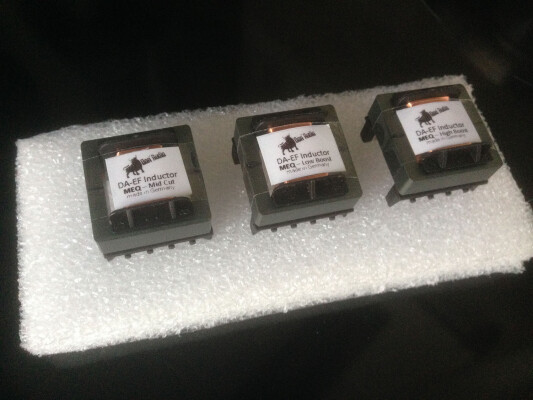

MEQ Inductor Set

Ohne Spulenset 0,00 €

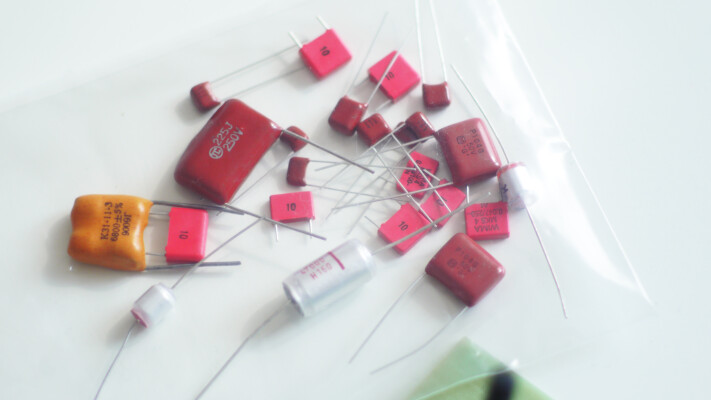

MEQ Filter Caps Kit

Menge: + (Anzahl erhöhen) - (Anzahl vermindern)

* Pflichtfelder

Kategorie

PCBs

Hersteller

Classi

ArtikelNr.

CLMEQPCB

Artikelgewicht

0,02 kg

Versandgewicht

0,10 kg

Weitere interessante Artikel dazu

Classi MEQ Filter Caps & Accessories Kit

45,47 €

inkl. USt., zzgl. Versand
MEQ-5 - Spulen Set EF

111,41 €

inkl. USt., zzgl. Versand

Beschreibung

The Classi MEQ Filter PCB is a brandnew enhanced quality Filter version to build up a classic passive midrange tube or OPA powered equalizer. It supports sweet sounding RM or EF inductors. This MEQ filter PCB works well together with the Classi PEQ OPA based Gainstage or a G-Pultec tube based power supply with Lundahl in- and output transformers as well. It supports all EQP-1A Frequencies and Frequencies of the classic MEQ mid-range equalizer. The design is made to go with the finest cap selection of Styroflex and WIMA-MKS4 caps for the filter signal path with individual leg space lengths 5mm to 10mm is supported. This PCB will take your project to the next level. It is an over a long time improved design with love in detail.

Check our Full Gain Stage Kit with all necessary building parts and the high recommended Lundahl LL5402 input and output stage "Iron".

Features:

Optimized grounding
Easy wiring
Reproduction of the classic EQ frequencies plus a wide band of enhanced frequencies that can be used as well.
Narrow to wide bandwidth control
Linear Frequency-Spectrum
Easy to build
Multiple Channels fit in 1HE enclosure with Classi OPA Gainstage.
Supports Styroflex and WIMA-MKS4 Caps
Supported Caps spacings: 5mm 7,5mm and 10mm
Optional Iron Transformer Output, Lundahl or Edcor
2 Layer quality design
Audiophile signal path design
