19" Mains Power Strip, 2 U, 9 Sockets
Category
Item no.
- DA-20171439
Description
These power distributors are cost-optimised powerhouses. Designed for everyday stage use, they provide a basic supply of conventional electricity requirements. The components have been selected based upon their fulfilment of the relevant safety requirements and a favourable price/performance ratio.
- 3 x indicator lamps for phase control L1, L2, L3

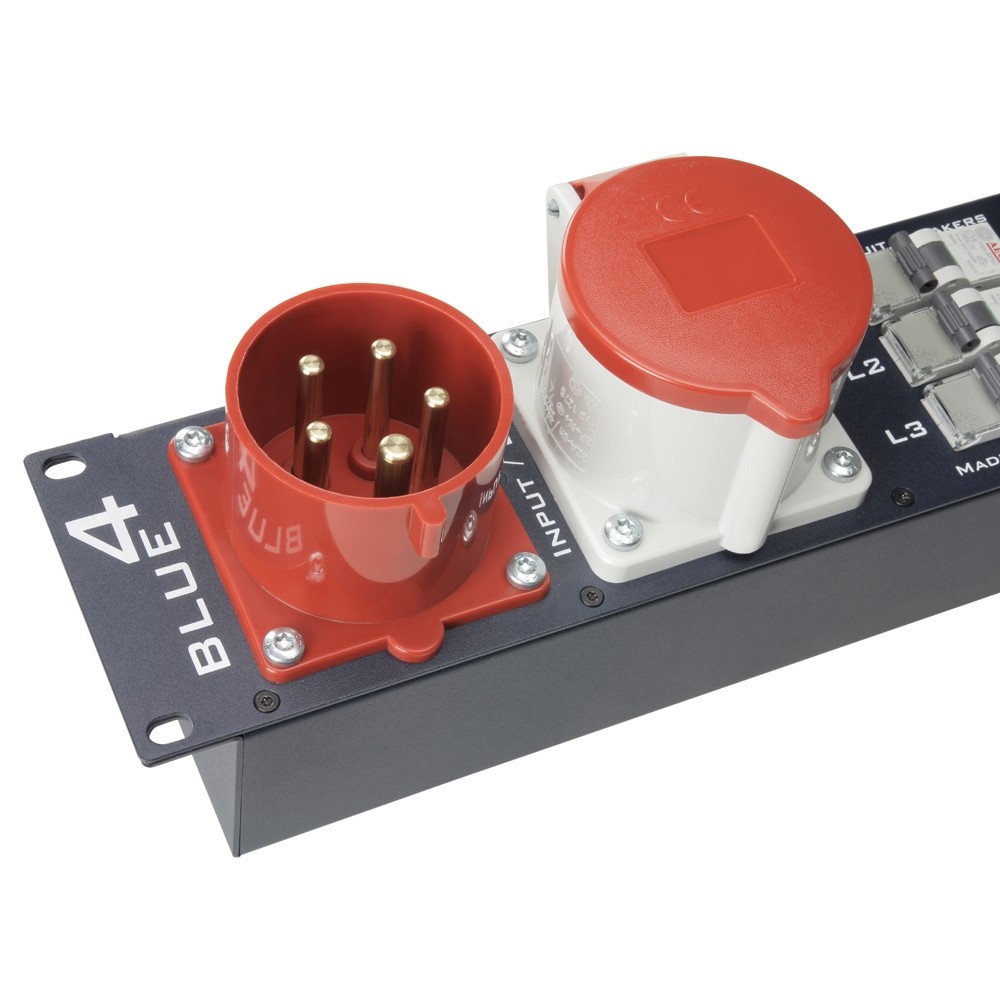

- Input via 32 A CEE connector 5-pin red
- Output parallel to input 32 A CEE socket 5-pin red

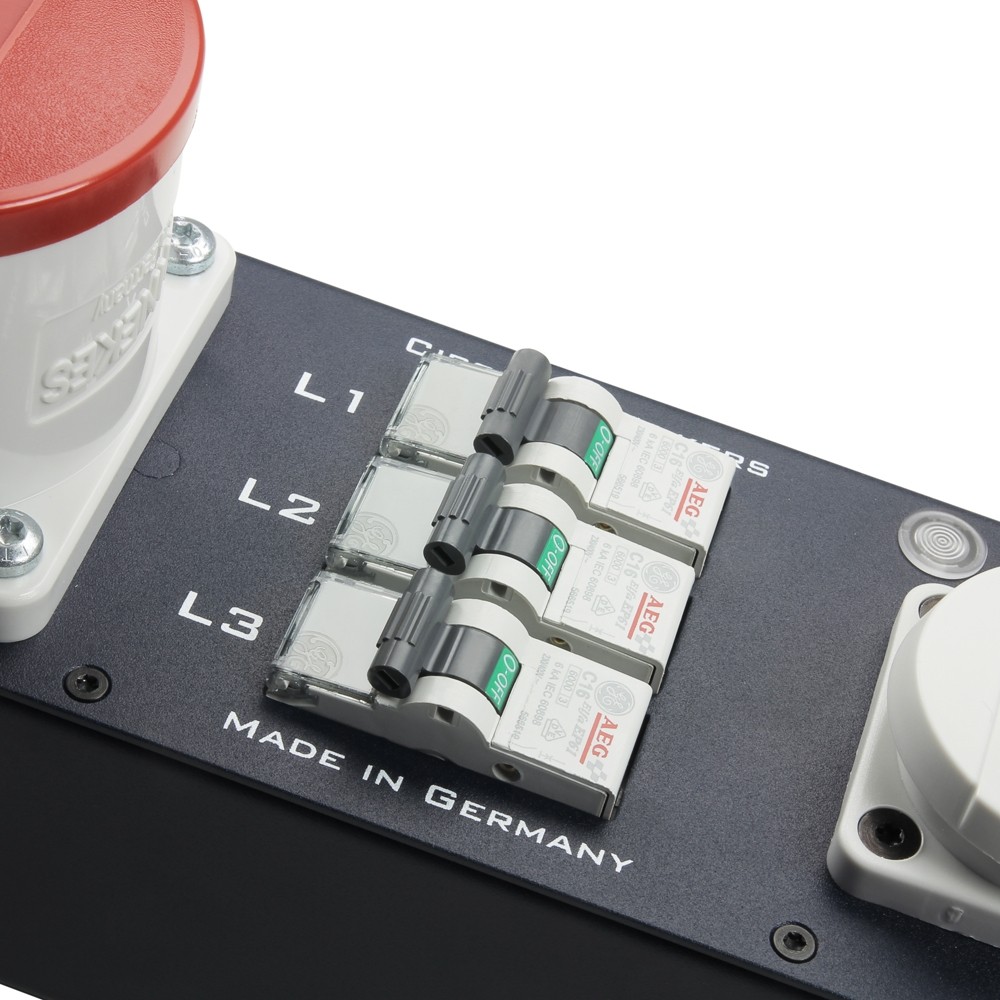

- Protection via 3 x C16 circuit breakers

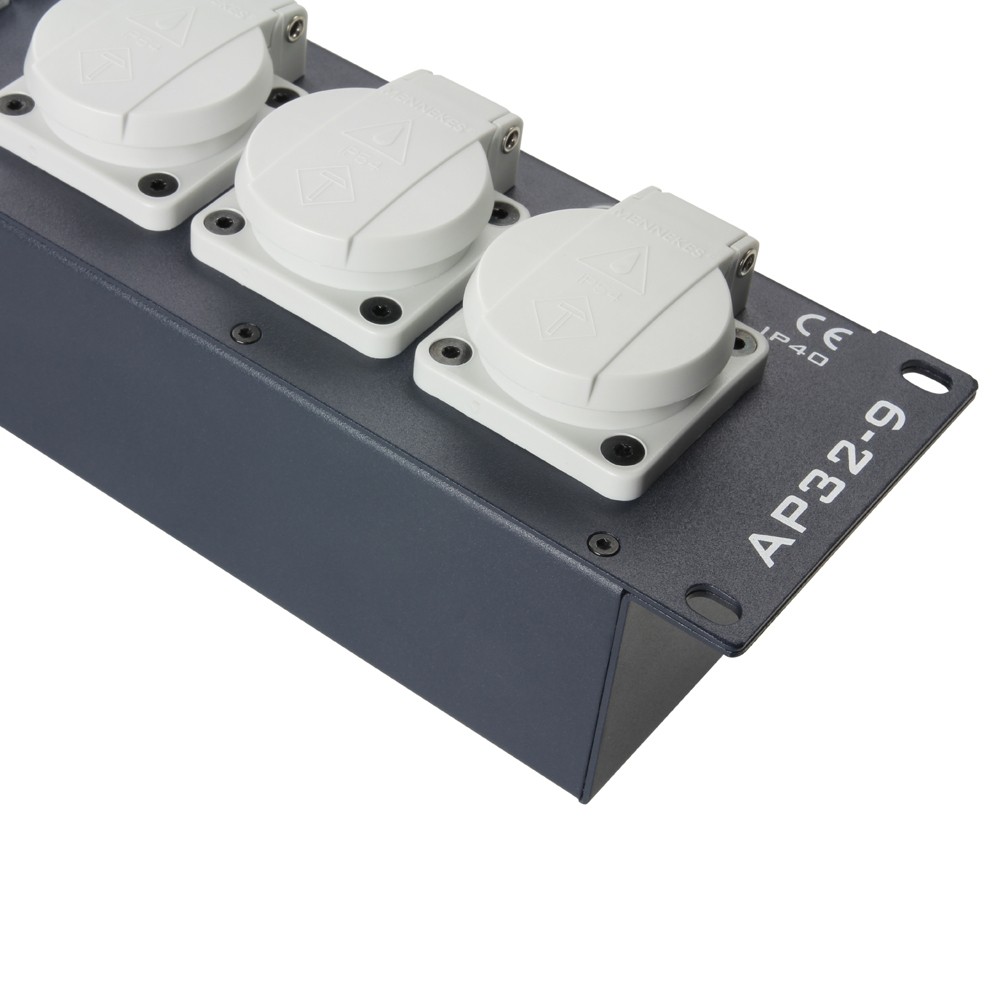

- Front output via 3 x protective contact sockets with hinged lids grey

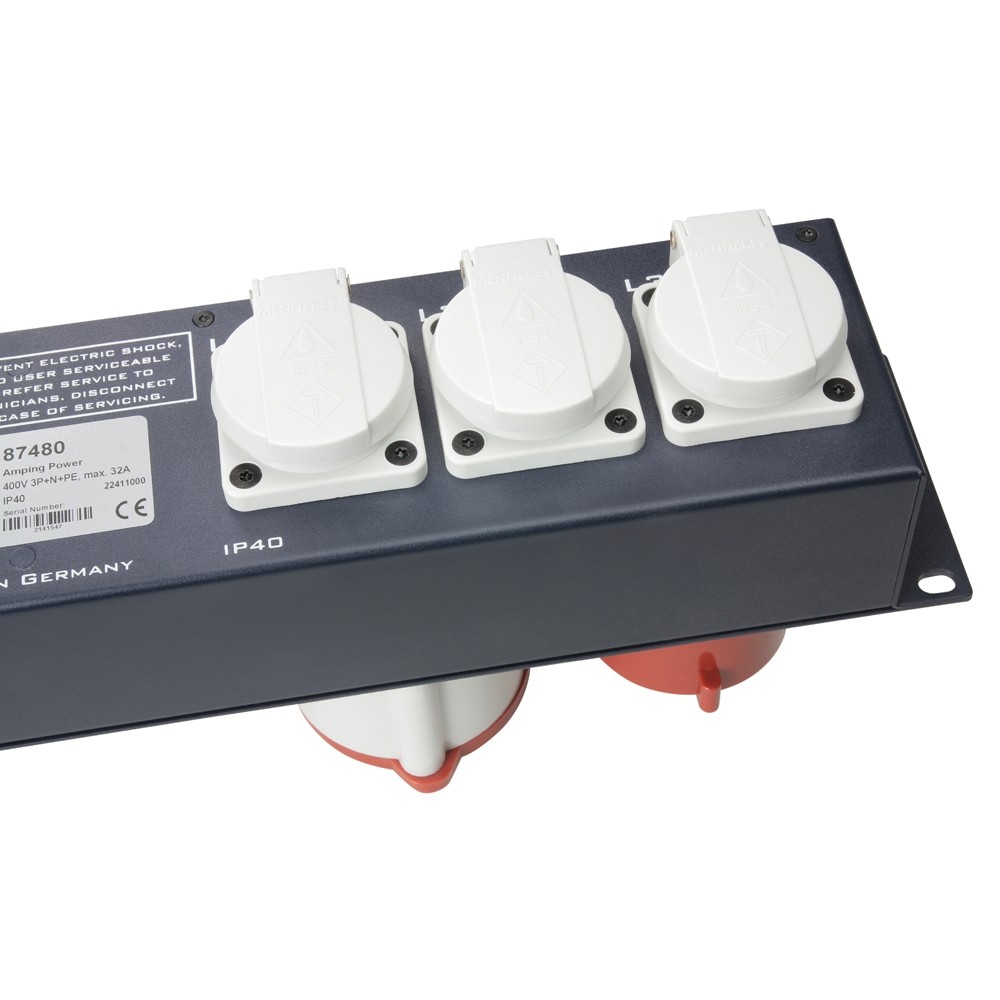

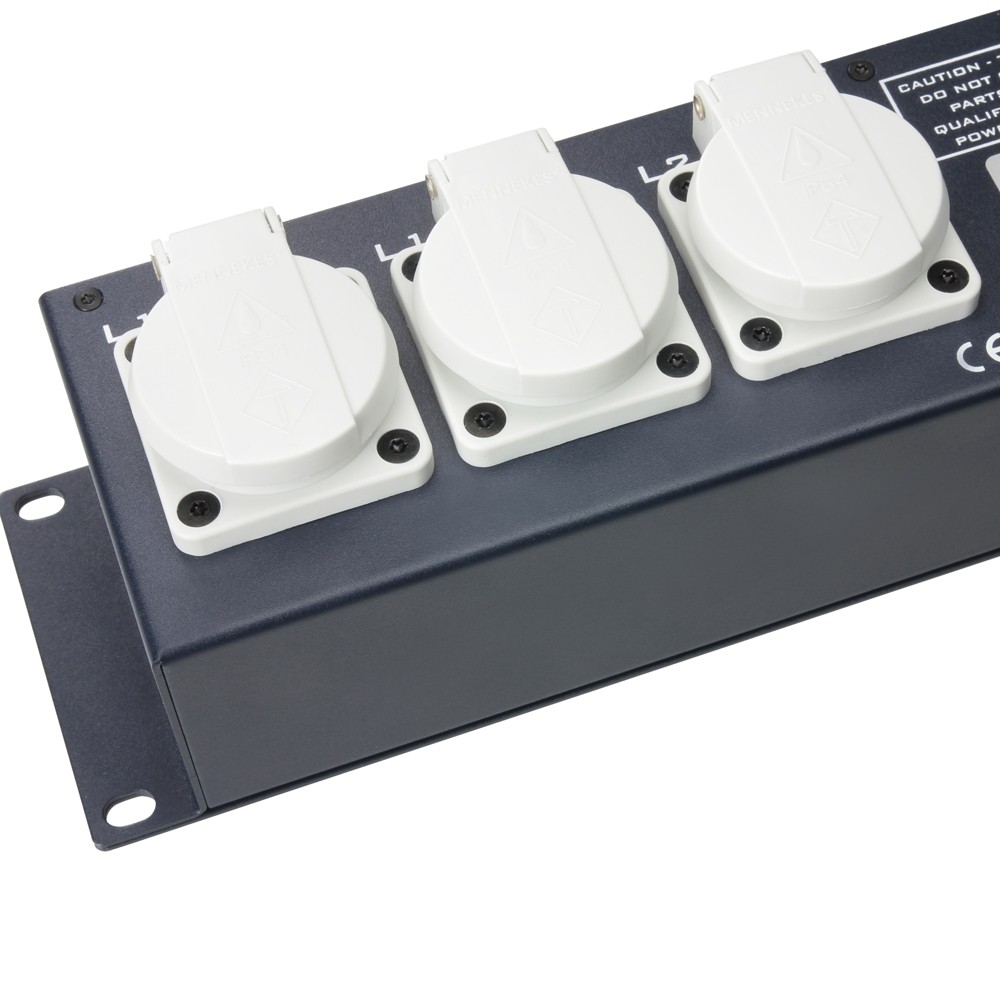

- Rear output via 6 x protective contact sockets with hinged lids grey
- Quality Made in Germany
Product type
19 " Rack power strips
Type
19" / 2 U
Number of outlets (Earthing contact / IEC 7/4)
9 (3 x front, 3 x 2 rear)
Power input
32 A CEE 5-pole panel socket, red
Output parallel to input
32 A CEE 5-pole panel plug, red
Operating voltage
400 V
Max. current
3 x 16 A
Fuse
3 x C16 circuit breaker (C tripping characteristic : for higher switch-on power)
Cabinet material
sheet steel
Colour
blue
Width
485 mm
Height
88 mm
Depth
70 mm
Other features
indicator lamp pro phase
Weight
3,06 kg
